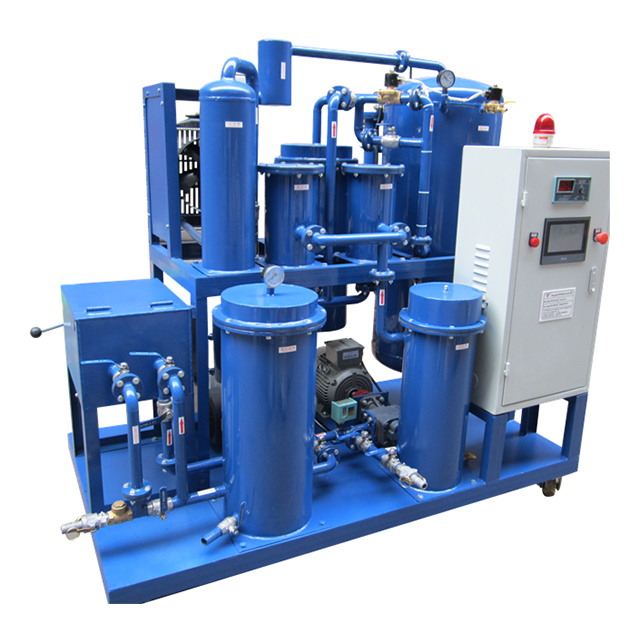

COP Used Cooking Oil Filter Machine

Application
Series COP oil filtration machine is mainly used for purifying UCO used cooking oil, vegetable oil, KFC oil, edible oil, rape oil, sesame oil, peanut oil, coconut oil, beam oil, kitchen oil, bio-diesel oil, plant oil, wood oil etc. It dewaters, deodorizes, and eliminates impurities highly effectively. According to the cooking oil nature, the used cooking oil includes high content water, more acid matters, much impurity and offensive odor. This machine adopts plate pressure system and can separate the impurities and water from the oil quickly and effectively. Added two primaries filter and fine filter, it can remove impurities thoroughly. And the machine adopts high vacuum system to dewater and deodorize. In addition, this machine uses stainless steel filter elements, which resists the acid in oil strongly. After the used cooking oil is recycled by machine, it will become clear and fresh.

Features
1. Highly effective vacuum dewatering, deodorizing, and impurities removing system.
2. It adopts plate pressure system with the strong ability to filter the particles and impurities completely.
3. It has the back flush system which can clean the filter elements automatically.
4. We uses stainless steel filter element which has a good anti-corrosive performance. Especially, the precision of eliminating impurity is high and the service life is long. Also, it has large volume for holding the impurities.
5. Unique degassing and dewatering system: Using 3D-Evaporation technical and thin film evaporation, which can separate the trace water, soluble water and gases from the oil quickly by the Multi-level water-oil separation technology.
6. Hi-automatically operated, convenient, reliable, and safe.

Parameter

Item		Unit	COP-10	COP -20	COP -30	COP -50	COP -100	COP -150	COP -200	COP -300
Flow rate		L/min	10	20	30	50	100	150	200	300
Working vacuum		Mpa	-0.06 ~- 0.095
Working pressure		Mpa	≤0.4
Temperature		℃	0~100
Power supply			380V/50HZ/3Ph 5 wire(as customer’s requirement)
Working noise		dB(A)	≤65~80
Working time		H	≥ 4000
Continuous working time		H	≥150
Working noise		dB(A)	≤75	≤75	≤75	≤78	≤78	≤78	≤80	≤82
Electric heating power		kW	36	40	45	72	80	90	120	135
Total electric power		kW	38	42	47	75	87	101	135	147
Outlet(inlet) caliber		mm	Ф25	Ф25	Ф25	Ф32	Ф42	Ф50	Ф50	Ф60
Weight		kg	350	380	400	450	550	650	700	750
Size	L	mm	1500	1500	1500	1600	1750	1900	1950	2100
	W	mm	1000	1050	1050	1150	1150	1600	1600	1600
	H	mm	1600	1600	1650	1700	1750	1950	1950	2000
Index after filtering	Moisture content	PPM	≤50
	Gas content	%	0.1
	Impurity size	μm	≤1(Customerizable)
	Demulsification value		(fresh oil)≤15min, (oil in operation)≤30mi
	Cleanness degree		≤4（NAS 1638）
