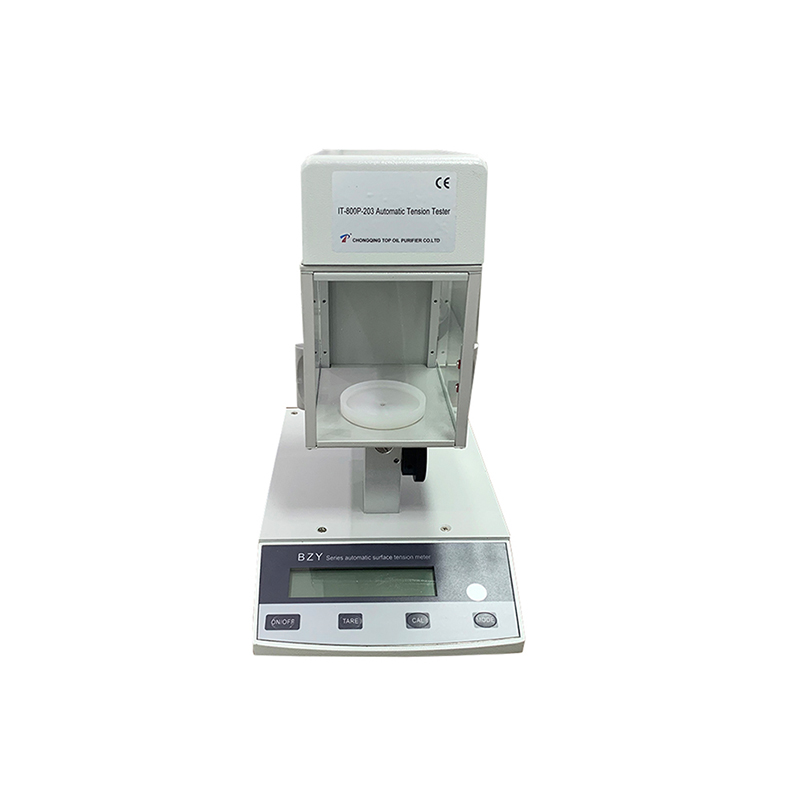

Automatic Surface/Interface Tension Tester (Platinum Plate Method) IT-800P

  • IT-800P

Availability:
Quantity:

Product Description

Features

1.Platinum plate method; easy and convenient operation.

2.Automatic digital test to reduce personal operation error.

3.Full scale reset. One button for zero clearing; instant achievement; zero temperature with no drift.

4.Full scale automatic revise: accurate and reliable data with good repeatability.

5.Direct display for the tension value of sample; no need more calculation.

6.Compact structure; working independently with no need of additional equipment like external computer.

7.Can detect surface tension changes caused by different time especially when there is any surfactant or volatile substance.

8.Automatically test middle or high viscosity liquid sample and get balance results.

9.Can test interfacial tension between liquids which don’t mixed like that between oil and water.

10.Can completely replace traditional mechanical surface tensiometer.

11.High cost performance.



Technical Parameters

Testing Method

Platinum plate method; automatic test

Testing Range

0-600mN/m

Sensitivity

0.1mN/m

Accuracy

±0.1mN/m

Repeatability

±0.1mN/m

Display

Wide viewing angle backlight LCD screen

Sample Temperature Range

0~100℃(requiring thermostatic bath and cell)

Testing Time

3s~5s for low density sample

Container capacity

At least 15ml

Data output

RS 232C serial or optional USB data interface

Power Supply

AC220V, 1A
