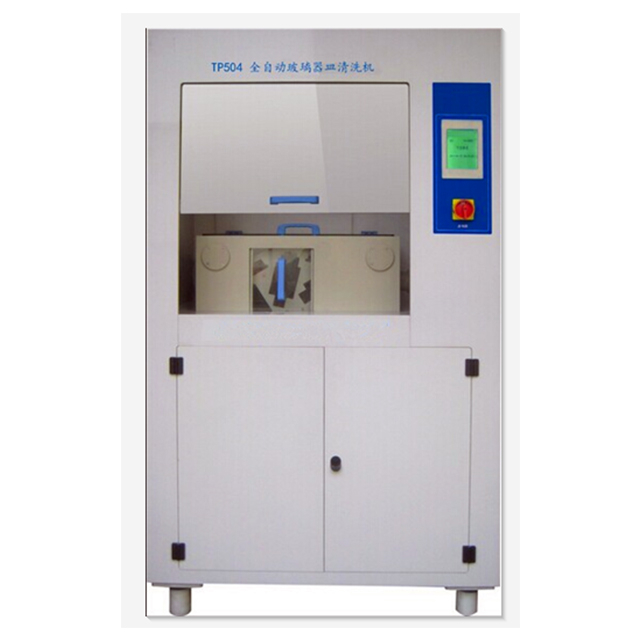

Fully Automatic Glassware Washing Machine TP504

  • TP504

  • TOP OIL PURIFIER

Quantity:

Product Description

Features
1. Cleaning cabin using double-walled structure, the internal use of 316L stainless steel plate, beautiful appearance, corrosion resistance,affixed to the exterior surface of the excellent performance insulation and adiabatic materials, to reduce heat loss and reduce noise.
2. piping systems made of high quality famous brand valves, imported pumps, stainless steel pipe fittings, the components are so durable that they can achieve better spray cleaning, heat sterilization, the supernatant lotion and other functions.
3. the control system uses high frequency CPU SCM control program; a wash, rinse, rinse ultrasound, blast drying, washing temperature and drying temperature 7 sets of preset cleaning procedures to meet the requirements of different cleaning utensils, can realize a variety of cleaning utensils cleaning function by a key.
4. after the wash is finished, there are no wall drops inside and outside the vessel, water film evenly distributed. After drying, there is no scale, no residual washing liquid and no sterile on the surface of vessels.
5. large-screen LCD display, touch control. Easy to laboratory personnel operation.
6. Automatically prompts alarm when there is no washing liquid, no distilled water. Washing liquid temperature, drying air temperature in real-time display, with the function of temperature control relay automatically cut off.

Technical parameters

Technical parameters
1. Power supply voltage: AC 220V ± 10%
2. Power frequency: 50Hz / 60Hz ± 1%
3. Ultrasonic Power: 500W
4. Heating system power: 3000W
5. Drying System Power: 2000W
6. Maximum operating power: 3500W
7. Ambient temperature: 5 ~ 40 ℃
8. Humidity: <85% RH non-condensing
9. External dimensions: 1100mm × 780mm × 1900mm

Standard configuration






NO Name Model Unit Quantity Remark
1 The host of cleaning machine TP504 set 1
2 Washing machine bracket

12
3 Power control box

1
4 Upper water pipes

1
5 Lower water pipes

1
6 Washing liquid measuring cup 100g
1
7 Certification TP504
1
8 Instruction TP504
1
9 Warranty card TP504
1
